Friday was a big day for Nintendo, and indeed the gaming community as a whole, with the launch of the new and innovative console-tablet hybrid, the Nintendo Switch. For consumers lucky enough to get their hands on this new release over the weekend, tearing it apart is probably the very last thing on their minds. Here at TechInsights, however, we couldn’t wait to get started and take a look at what is bringing our heroes, Mario and Link, to life once again.

This unique combination of mobile play with big screen living room comfort in one integrated system gives us at least four different component parts to tear down and do what we do best. We were particularly eager to delve into the那些Joy-Con控制器的神秘面纱看看我们能不能提供一些新的见解。一定要通读到底，看看我们发现了什么。

扩展底座

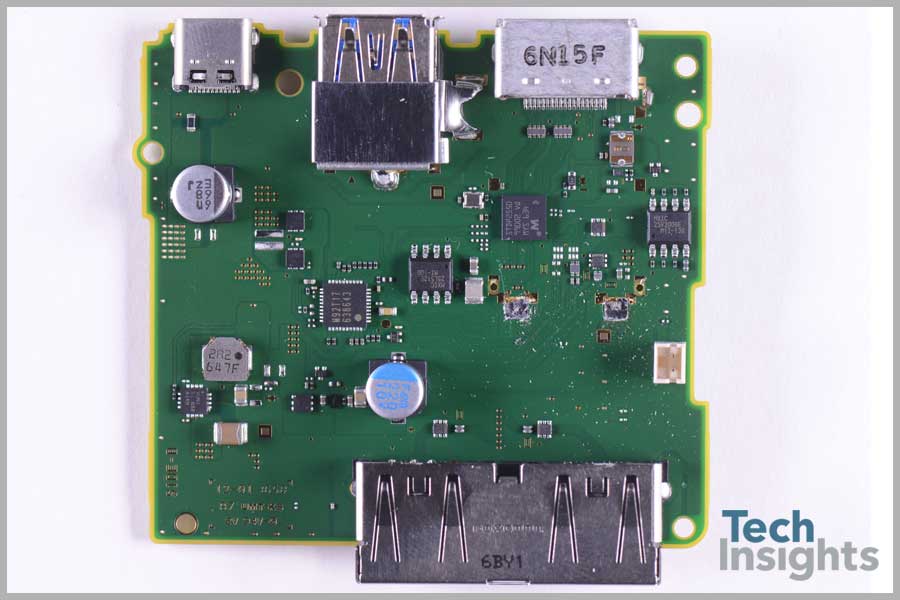

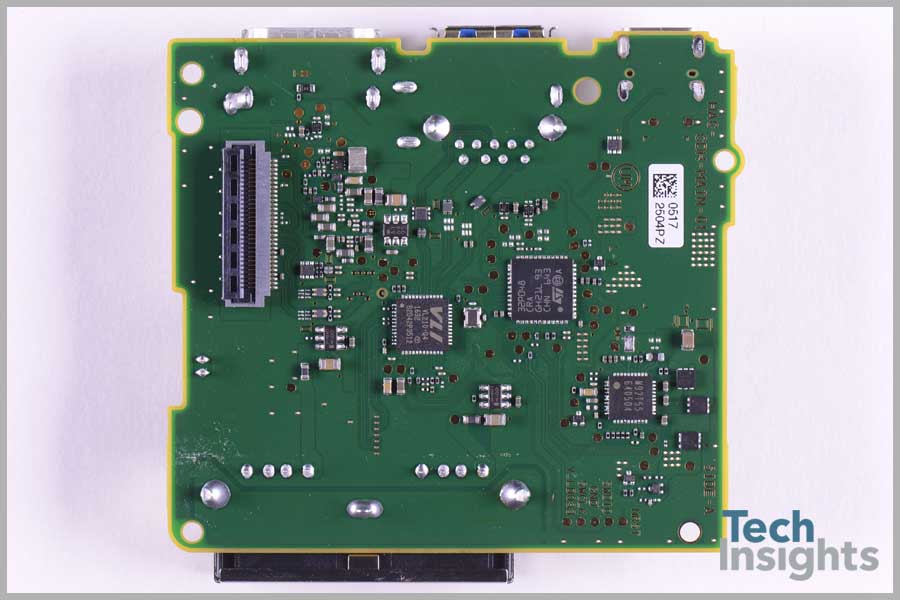

当主移动单元放入扩展坞时，将变量进入其起居室控制台对应物，并将您的游戏带到大屏幕上的生活。这种额外的功能由a带给您通过实验室VL210-Q4USB3.0集线器控制器，一个STMicroelectronics 32P048（可能是MCU），一个Macronix MX25V2006E2 MB串行闪光灯和一个MX25L512E512 Kb serial Flash, aMEGACHIPS STDP2550Mobility DisplayPort（MyDP）到HDMI转换器，a德州仪器TLV62130ARGT（“Vuni”包标记）DC / DC转换器和未知的M92T55芯片。

Joy-Con红外相机Module

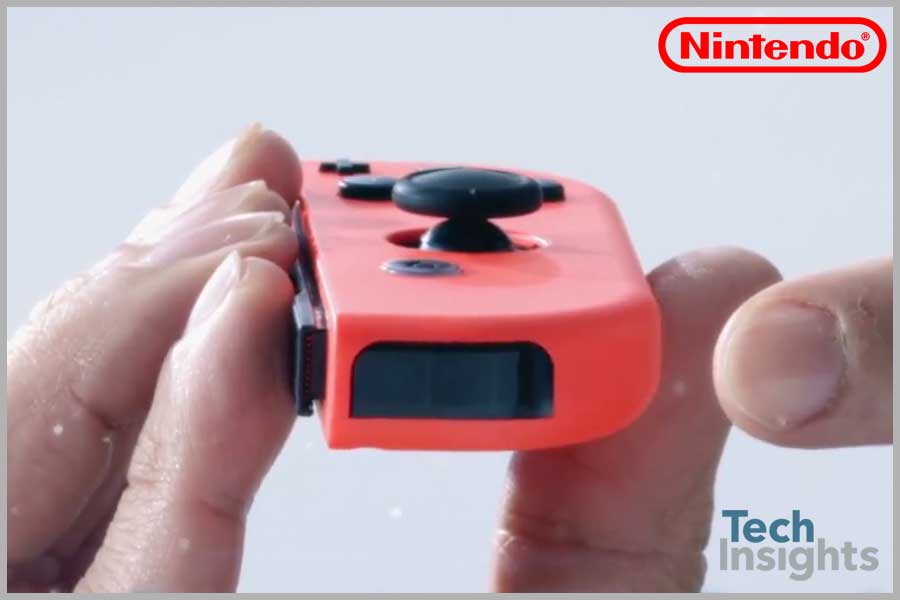

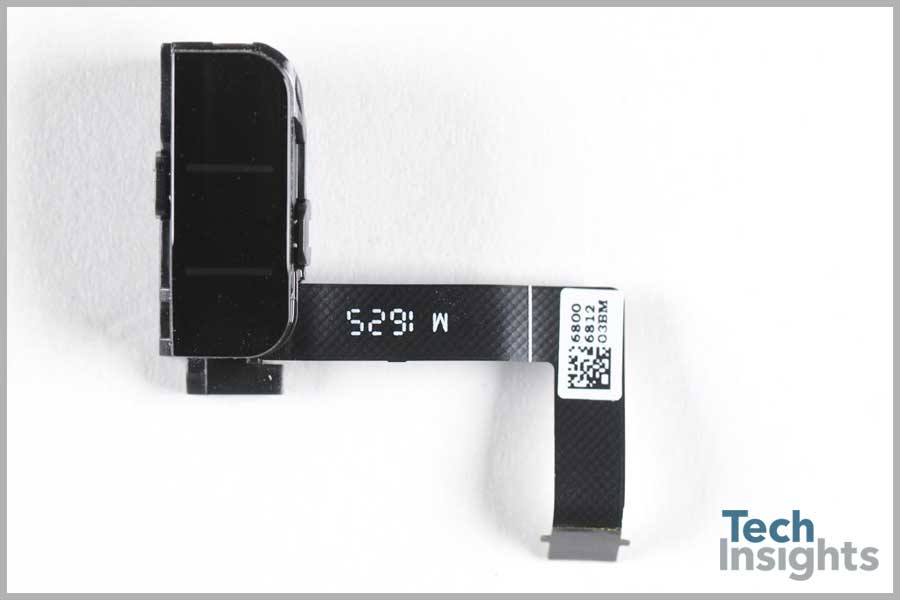

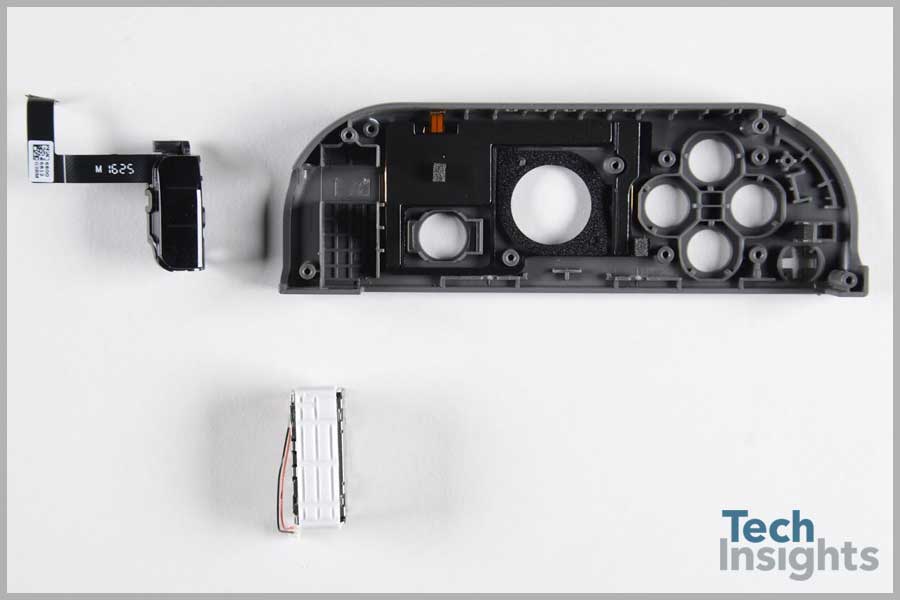

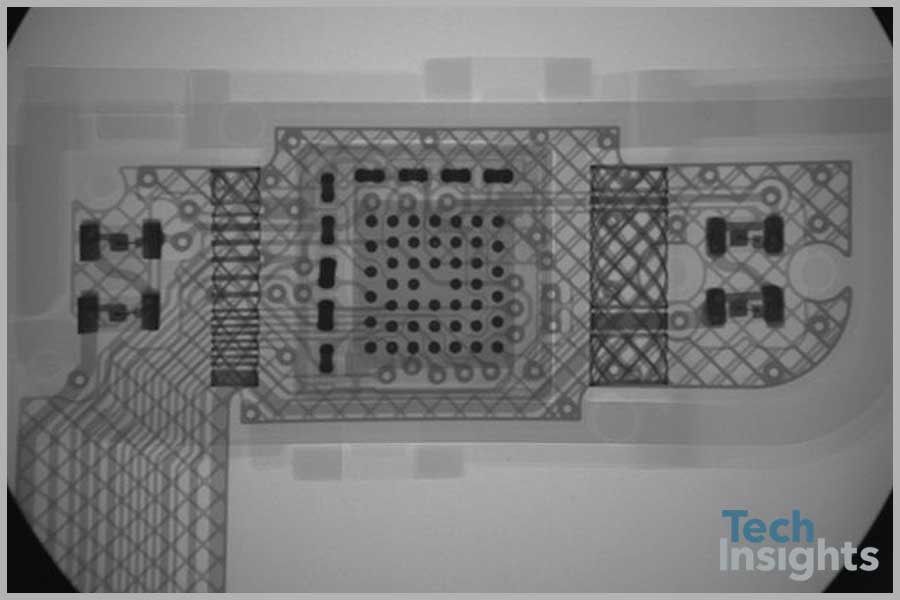

Also residing in the right Joy-Con is another feature, the motion IR camera. This camera is an infrared CMOS image sensor that is used to detect object shape and distance and,according to Ars Technica and Nintendo,will be able to record full video in the future. This camera sensor appears likely to be manufactured by OmniVision, and has a die size of 3.90 mm x 3.73 mm and a pixel pitch of 5 µm.

Joy-con连接的神秘面纱

自任天堂交换机的初始审阅者版本以来，在手持模式和主控制台中，Joy-Con控制器之间存在广泛的间歇连接挑战。在线视频show the player covering the controller with their other hand, or placing it behind their back, causing the controller signal to jump and sometimes disappear altogether. These problems were first noticed in reviewer units causing concern among consumers. While the issue is not consistently replicated in all units (or even with both controllers), they persist in newer consoles, even after installing a software update reported to solve the problem.

In this screen capture from the video linked above the player has moved his right hand to cover up the “inside” of the Joy-Con. On that inside surface, just under the plastic cover, is the antenna for the BCM20734 Bluetooth 4.1 SoC.

这个同步问题仅仅是因为覆盖了天线，还是这里发生了更多的事情？

On Nintendo’s support site they suggest interference from other BT transmitters may interfere with the Joy-Con signals, stating that “in most cases it will be enough to move these devices three to four feet away from the Nintendo Switch console and/or Joy-Con controllers. However, if you continue to experience this issue, please power these devices off while using the Nintendo Switch console.” Not only are reports of its efficacy mixed, this is really an impractical solution. How many game systems are in a room where there are other BT devices functioning? These days, probably all of them.

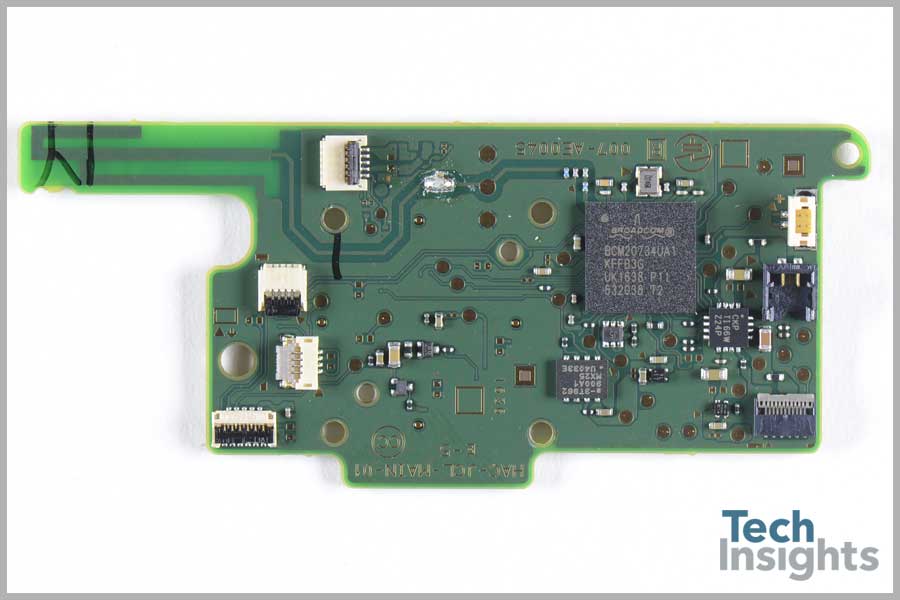

不幸的是，我们太渴望开始我们的拆除来首先测试我们的单位，因此我们不确定我们是否有一个好的，但是有可能在那里有一个糟糕的设计。在我们的右图中，如下图所示，我们看到一个非常裸露的骨头BT天线设计：连接器，电线和非常小的天线。也许天线太小了。

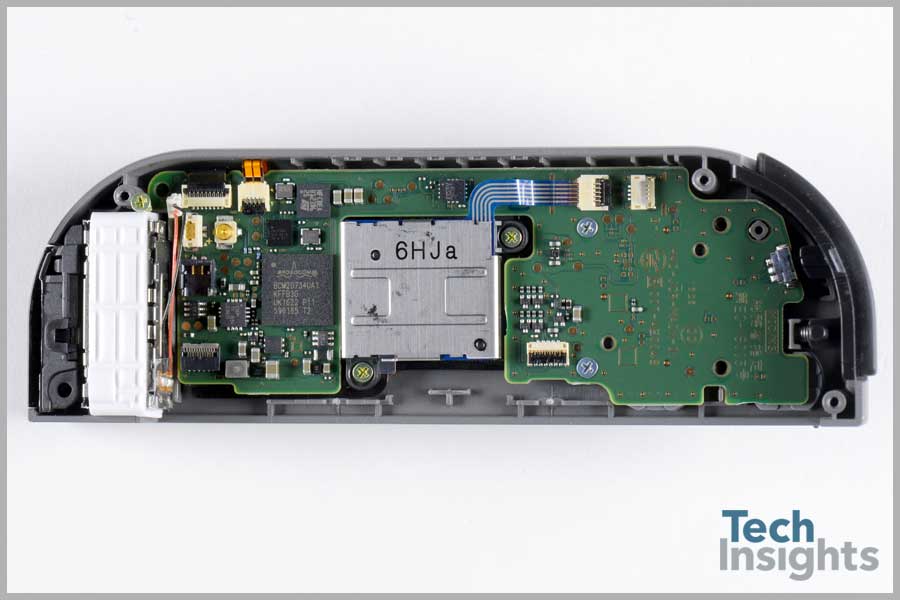

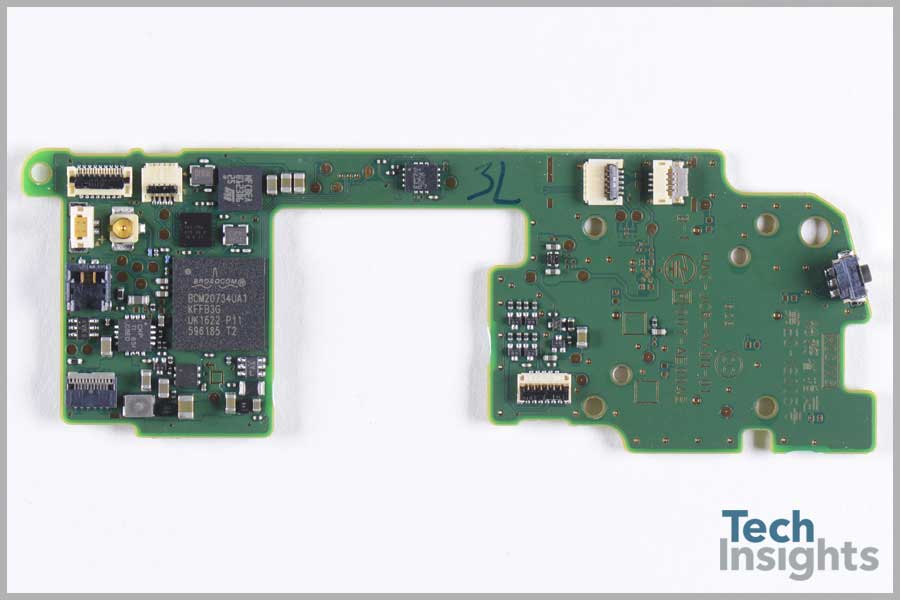

Here in a cleaner image, the antenna connection of the right controller can be seen more clearly. The gold connector on the left leads to a rectangular piece of fiberglass, or FR4, with a metallic coating that is the actual antenna. This rectangular plate resides on the flat edge of the Joy-Con and is underneath that flat face plate.

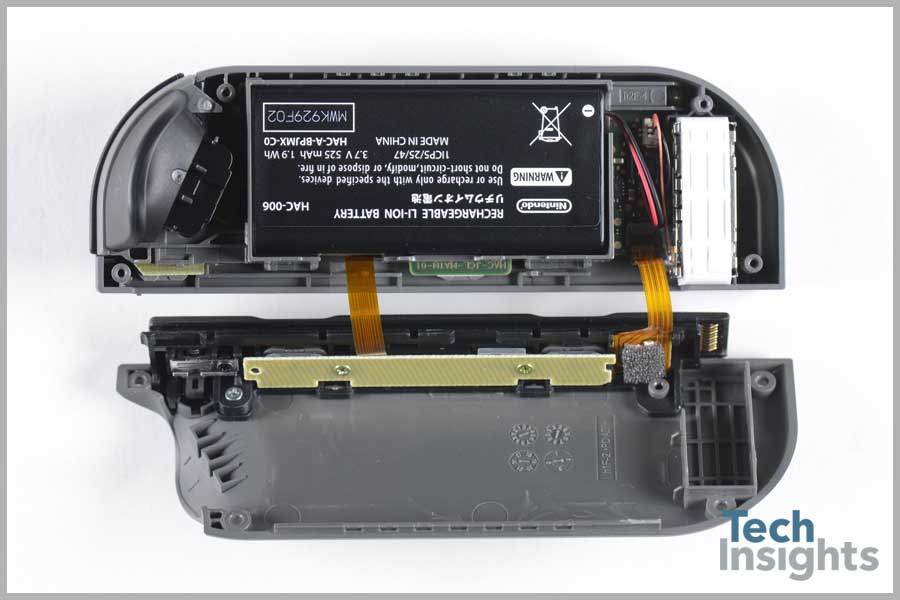

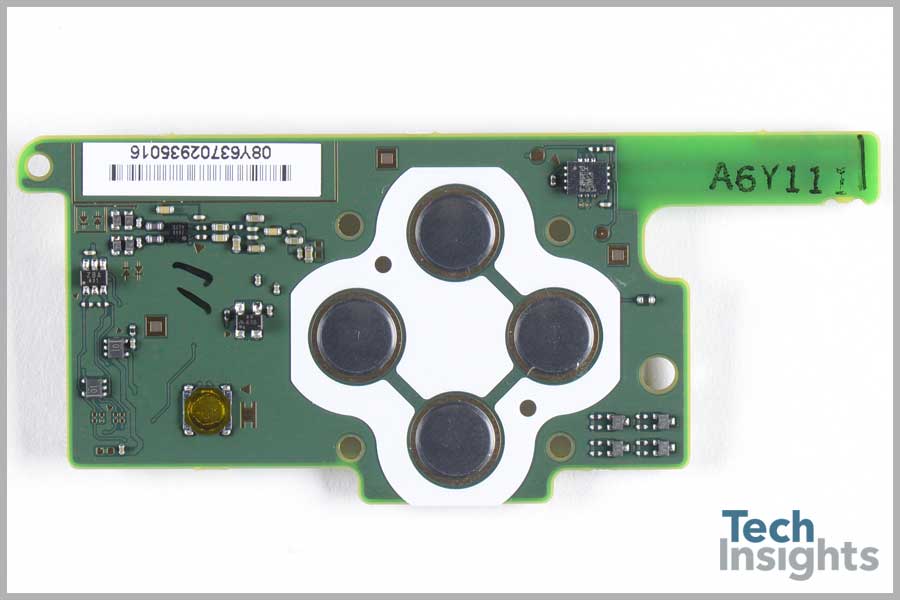

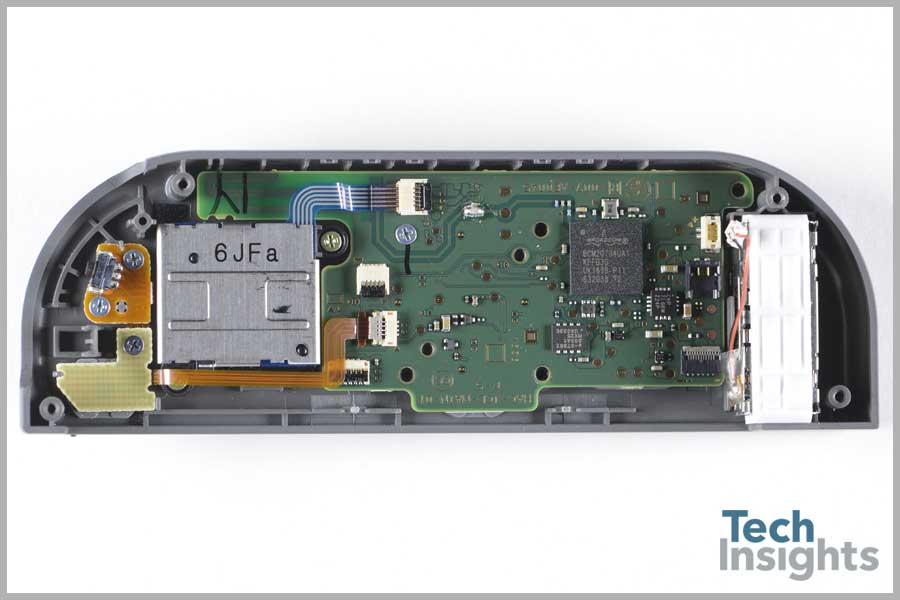

According torecent reports，左控制器不共享此设计，而是“左Joy Con中的天线直接焊接到主板上，紧挨着一个金属盒。”在下面的并排图像中，可以看到左控制器中的此位置确实没有天线。这就为左控制器更常见的问题提供了可能的解释。

任天堂对这些报道反应迟钝。他们的答案，当我们得到一个，将告诉我们。他们会发布另一个更可靠的软件更新吗？或者，消费者的“故障”单位提供更换或维修，指向设计缺陷？我们一定会关注他们下一步的行动。
